Details
- Motor: 1/2 HP, 110V/220V, Single-phase, 60 Hz, 1720 RPM
- Amps: 7 @ 110V, 3.5 @ 220V

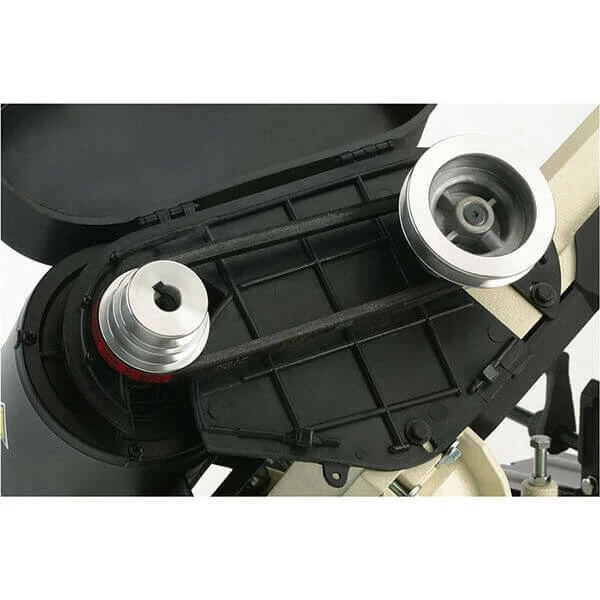

- Drive: V-belt
- Transmission: sealed worm gear
- Max. capacity rectangular @ 0°: 5″ x 6″
- Max. capacity circular @ 0°: 5″
- Max. capacity rectangular @ ±45°: 2-15/16″ x 3-3/4″
- Max. capacity circular @ ±45°: 3-3/4″
- Max. capacity rectangular @ +60°: 1-3/4″ x 2-3/16″
- Max. capacity circular @ +60°: 1-3/4″
- Blade speeds: 80, 120, 200 FPM
- Overall height: horizontal 42-1/2″; vertical 54-3/4″
- Floor to table height: 29″
- Overall width: 23-3/8″
- Overall length: 39″
- Overall bed: 19-1/4″ x 13-1/2″ x 3″
- Footprint: 26-1/2″ x 20-1/2″
- Angular cuts: -45° to +60°
- Blade size: 64-1/2″ x 1/2″

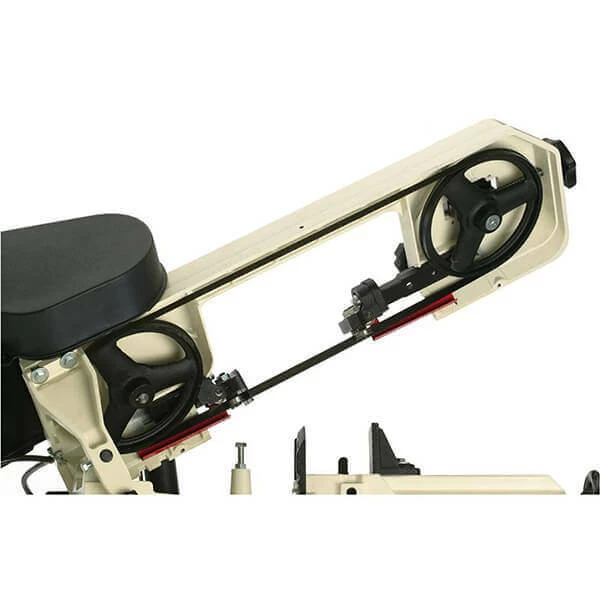

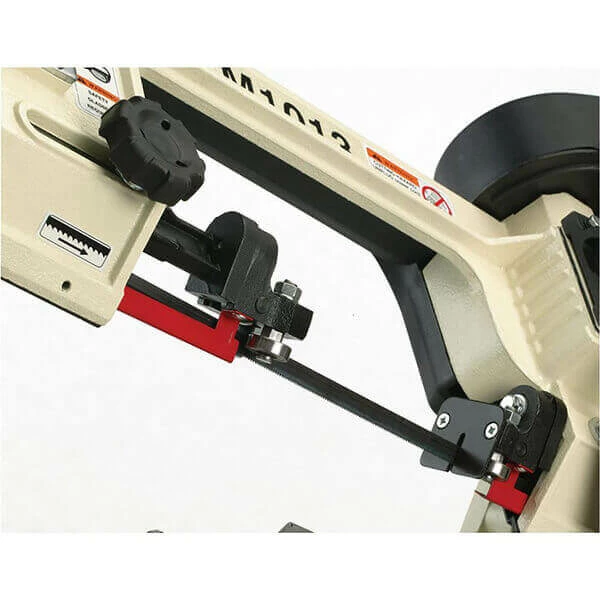

- All ball bearing drive wheel and blade guides
- Approximate shipping weight: 176 lbs
