Details
- Motor: 2 HP, 110V/220V, single-phase, TEFC capacitor start induction, 60 Hz, prewired 220V
- Amps: 20 110 / 10 220V
- RPM: 1725
- Precision ground cast iron table
- Table size: 26-3/4″ x 19″ x 1-1/2″ thick
- Table tilt: 10Β°L, 45Β°R
- Floor to table height: 37-1/2″
- Overall height: 76″
- Overall width: 36″
- Overall depth (including fence): 32″
- Cutting capacity/throat: 18-1/4″
- Maximum cutting height: 12″
- Blade length: 143″ long
- Blade sizes range: 1/8″ – 1-1/4″
- 2 Blade speeds: 1700, 3500 FPM
- Wheels: fully balanced cast iron with polyurethane tires
- Wheel covers: pre-formed, hinged steel
- Blade guides: roller disc with full enclosure protection and ball bearing design
- Bearings: sealed and permanently lubricated
- Blade tension indicator

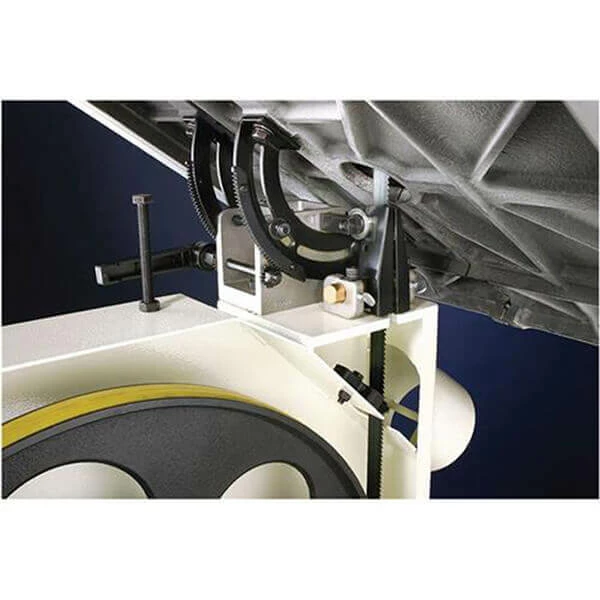

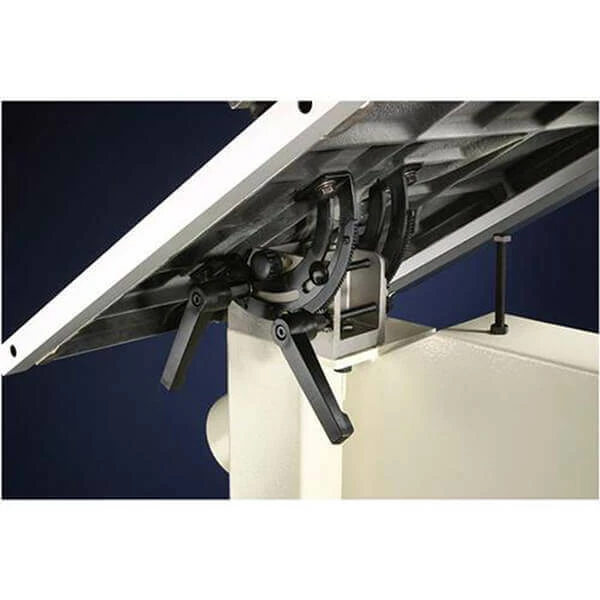

- Micro adjusting gear table
- Height scale measurement

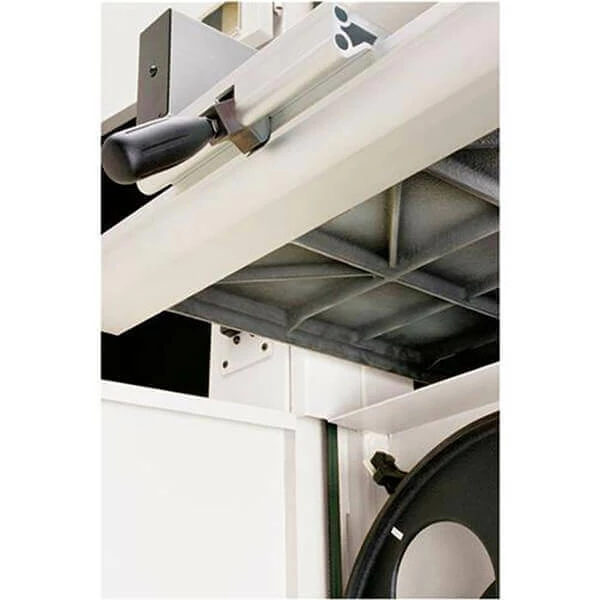

- Deluxe extruded aluminum fence with scale and magnifying window
- Miter gauge
- 4″ dust port x 2
- Quick change blade release/tensioning
- Rack and pinion upper guide adjustment
- Includes 5/8″ blade
